DC 12-24V 24A IR Led Controller with 44 Key Remote Control for 2835/ 5050 RGB LED Strip Auto Memorizing Function

0 Reviews | 0 answered questios ID: 18351

Price: ₹599 ₹ 999.00 40% Off

100% Brand New, High Quality & Great Finishing.
44 Keys IR Remote.
IR Controller Box.
Total of 34 Modes for Your Choice.
Read More...

Quantity:

Total Price: ₹599

Min Order Limit: 1

SKU:

TRPMART 44 Key 24A IR LED Controller for RGB LED

Category:

Tags:

Description Specification Additional Information Reviews Wholesale Enquiry Customers Q&As

IR Controller adopts the advanced micro control unit, it is used for controlling a cariety of lamp whose source of light is LED. For instance, point source of light, flexible light strip ,wall washer lamp,glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection , simplicity to use and others . According to the actual need of customers, it can carry out jumpy changing, gradual changing. strob flash and other effects of change.

Features:

According to the Actual Need of Customers, It Can Perform Jumpy change, Gradual change and Other Effects of Change.
This Item Can Support Max 40 meter (30 led/M) RGB LED strip or 20 meter (60 led/M) RGB LED Strip.

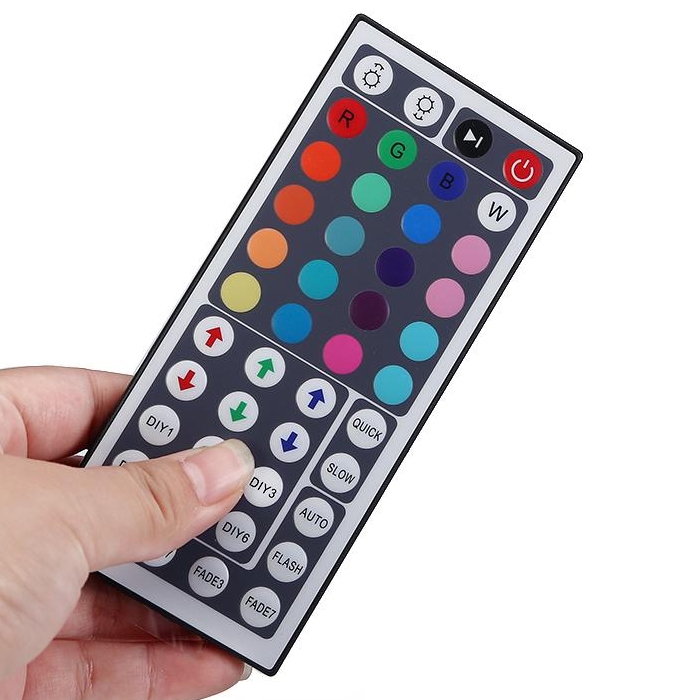

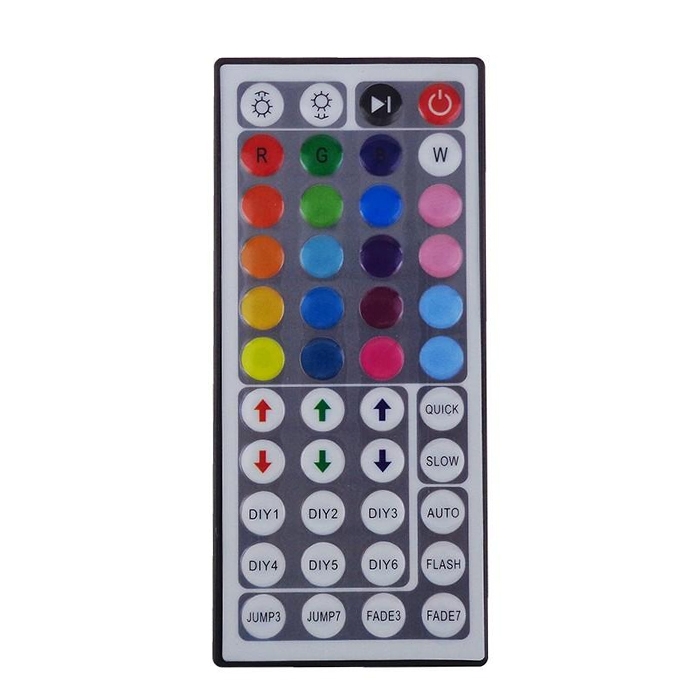

44 Keys on IR Remote Controller: ON/OFF, Speed Up, Speed Down and Program. It Can Carry out Jumpy Changing, Gradual Changing, Strobe Flash and Other Effects of Change.
Work with 12V to 24V DC Output Power Supply.
This Controller is Designed for Low Voltage (12V-24V) Light, Such As 12V LED Strip, 12V Panel Light etc

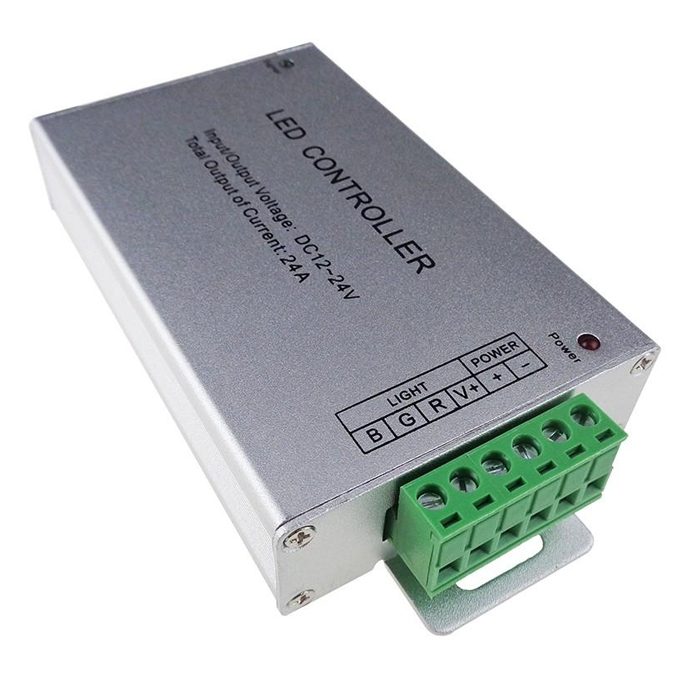

Housing: Aluminum Case.

Remote Function:

20 Preset Colors and White.
Brightness/ Dimming.
On/ Off
Mixing and Storing Colors.
FLASH, Changes Color with Quick Transition.
Smooth, Faster Transitions Through the Colors.
FADE, Soft Transitions Between Colors.
8 Light Pattern:Quick/Slow/ Aut/ Flash/ 7 color fade change/ 3 color fade change/ 7 color jumpy change/ 3 color jumpy change R/ G/ B Increase and Decrease Control.

How to Program Remote:

When you want to define a color, firstly, press one of the DIY keys to enter the mode of color definition, then press the addition key or subtraction key of red, green or blue to adjust the color(the operation of pressing any keys outside of the DIY region will be away from DIY mode and the previous operation is invalid). When you press the DIY second time, the current color value will be saved. If you press the DIY key the next time, it will display color value stored recently. This remote control has 6 DIY keys altogether, therefore you may establish 6 colors to your liking. Each of them is independent.

Please Note:

This Unit Does Not Send out RGB Data to Control RGB Led Strips, But it Can Increase the Current Through the Strip and Make the Long Strip Work in Good Condition!
Supply Voltage of this Product is DC 12-24V Never Connect to AC 220V Directly.

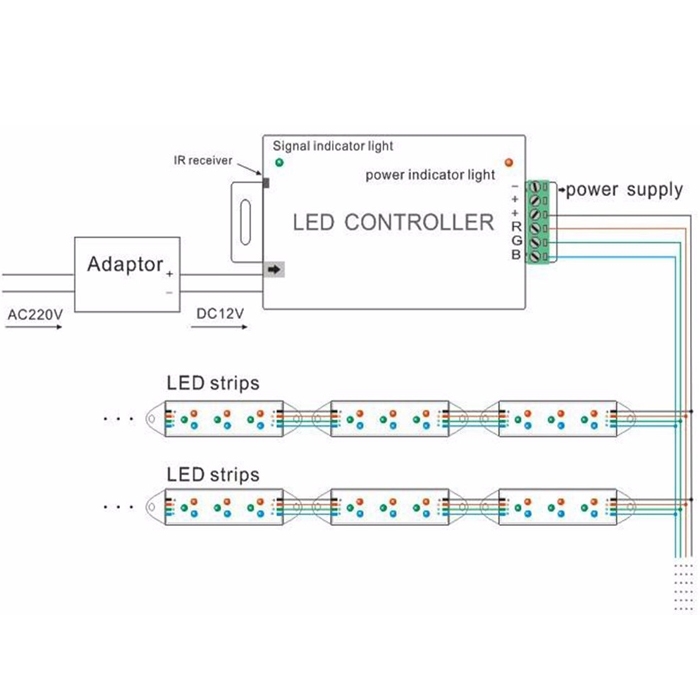

Connect the Load Wire at First, Following by the Power Wire; Please Ensure Short Circuit Can Not Occur Between Connecting Wire Before You Turn on the Power.
Read All Description & Fitment Before Ordering the Product.
Check the Fitment Model & Compare the Pictures Before Your Purchase, Thanks!
Installation Instructions Not Included, Tool Not Included.
Professionals Installation is Strongly Recommended to Avoid Trouble Caused By Inexperienced Installer!
Product Color/ Texture May Slightly Vary Due to Photographic Lighting Sources or Your Monitor/ Mobile Settings.

Package Include:

1 x Aluminum Alloy 24A LED Controller
1 x 44 Key Remote
1 x User Manual

Brand	TRPMART
Product Color:	As Shown In Image
Compatible:	Indoor & Outdoor, Home, School, Shop, Office, Hotel, Factory & Industrial Use, Diwali Decoration Lights/ Christmas Decoration Lights/ New Year Decoration Lights/ Wedding Decoration Lights
Material:	Aluminum Alloy, ABS Plastic, Electronic Parts, Metal, PCB Board Circuit with Microcontroller Chip
Operating Voltage:	12V to 24V DC Power
Output Power:	240 Watt
Output Voltage:	12 Volt DC, 24 Volt DC
Pack of:	1 PCS
Feature:	Portable, IR Remote Controller
Warranty Summary:	10 Days Replacement (Manufacturing Defects Only)
Warranty Conditions:	Used / Burnt / Cut / Damaged / Tampered Goods Not Covered
Country of Origin:	China
Weight	200 Gram
HSN	8537
Dimensions	13.5 X 8 X 5.5 cm
