HTC Instrument DM-97 3¾ Digital Multimeter 4000 Counts/ Capacitance/ Frequency/ Temperature/ AC Voltage Range 0.1mV to 750V

0 Reviews | 0 answered questios ID: 11647

Total Price: ₹1699

Price: ₹1699 ₹ 2499.00 32% Off

  • 100% Brand New, High Quality & Great Finishing.
  • HTC DM-97 Handheld Digital Multi Meter With LCD Back Light.
  • 3¾ Digit LCD Display with Manual.
  • 4000 Counts Large LCD Display with Auto/Manual Range.
  • Read More...

Total Price: ₹1699

  Min Order Limit: 1

HTC Instrument DM-97 3¾ Digital Multimeter 4000 Counts/ Capacitance/ Frequency/ Temperature/ AC Voltage Range 0.1mV to 750V.
Features:
  • Tests AC/ DC Voltage, DC Current and Resistance.
  • Transistor Check, Diode and Continuity Test.
  • Data Hold, Max. / Min. Value Hold
  • Overload Protection on All Ranges.

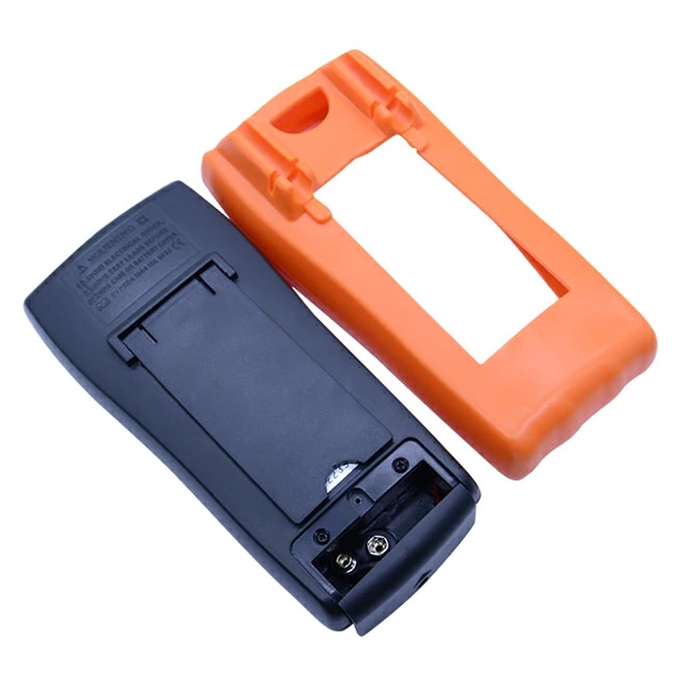

  • Housed in a Rugged Rubber Boot with Integral Stand.
  • No Power-OFF under natural operation.
  • Portable & Compact Design.
  • 11 Position Rotary Switch.
  • Low Battery Display: Lower 2.4 V.
  • Auto Power OFF: Approx 30 Min.
  • Display Back Light: Yes.
  • Measures AC & DC Voltage, DC Current, Resistance, Audible Continuity, Diode/Transistor Verification Mode.
Applications:
  • Widely used for measuring voltage, current and electrical resistance.
Please Note:
  • Read all Description & Fitment Before Ordering the Product.
  • Check the Fitment Model & Compare the Pictures Before Your Purchase, Thanks!
  • Installation Instructions Not Included, Tool Not Included.
  • Professionals Installation is Strongly Recommended to Avoid Trouble Caused By Inexperienced Installer!
  • Product Color/ Texture May Slightly Vary Due to Photographic Lighting Sources or Your Monitor/ Mobile Settings.
Package Include:
  • 1 x HTC Instrument DM-97 3 ¾ Digital Multimeter .
  • 1 x Test Loads Pair.
  • 1 x K-Type Leads
  • 2 x 1.5 Volt AAA Battery.
  • 1 x English User Manual.

Brand HTC INSTRUMENTS
Product Color: As Shown In Image
Compatible: Home, School, Shop, Office, Hotel, Factory & Industrial Use
Material: ABS Plastic, Electronic Parts, PCB Board Circuit with Microcontroller Chip
Operating Voltage: 2 x 1.5 Volt AAA Battery
Pack of: 1 PCS
Feature: Portable, Handheld
Warranty Summary: 3 Months Manufacturer Warranty
Warranty Conditions: Used / Burnt / Cut / Damaged / Tampered Goods Not Covered
Country of Origin: China
Weight 550 Gram
HSN 9030
Dimensions 21 X 13 X 6 cm
Technical Standard:
Brand: HTC Instrument
Model No.: DM-97
Display: 3 ¾ Digit LCD Display
Type of Product: Digital Multimeter
Counts: 4000
AC Voltage Range: 0.1mV to 750 V
AC Voltage Accuracy: ±(0.8%+6)
DC Voltage Range: 0.1mV - 1000 V
DC Voltage Accuracy: ±(0.5% + 4digit)
AC Current Range: 0.1uA - 20 A
AC Current Accuracy: ±(1.5% + 5digit)
DC Current Accuracy: ±(1.0% + 5digit)
DC Current Range (Amp): 0.1uA - 20 A
Resistance Range (Ohm): 0.1Ω - 40 MΩ
Resistance Accuracy: ±(0.8% + 2digit)
Capacitance Range (F): 10pF - 200 ?F
Capacitance Accuracy: ±(3.5% + 8digit)
Frequency Range (Hz) 0.1Hz-30MHz
Frequency Accuracy: ±(0.5% + 4digit)

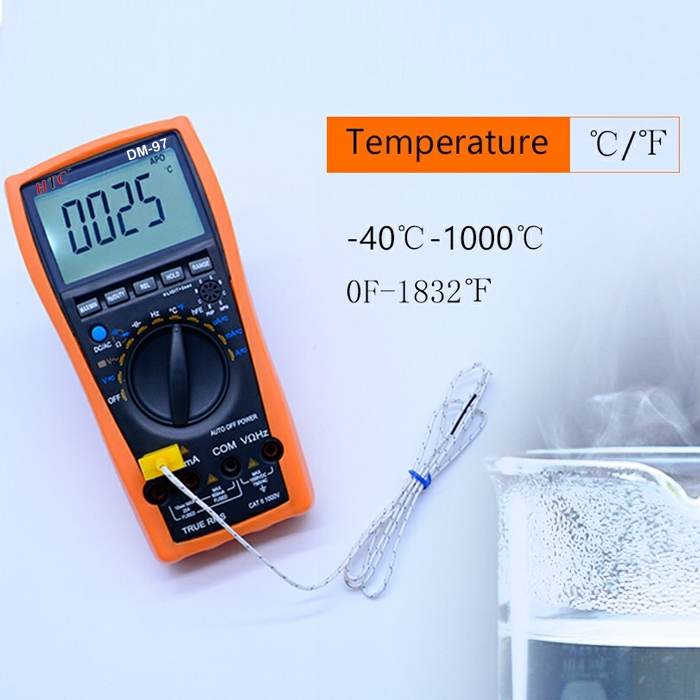

Temperature Range(C): -400 to 10000C
Temperature Accuracy ±(0.8% + 4digit)
Continuity Buzzer: Lower 30Ω ± 10Ω
Includes: Test Leads, Manual, TP 01 Temperature Probe Bead Type
Power Input: F3V AAA Battery (Included)
Dimensions: 185x93x35 mm Approx
