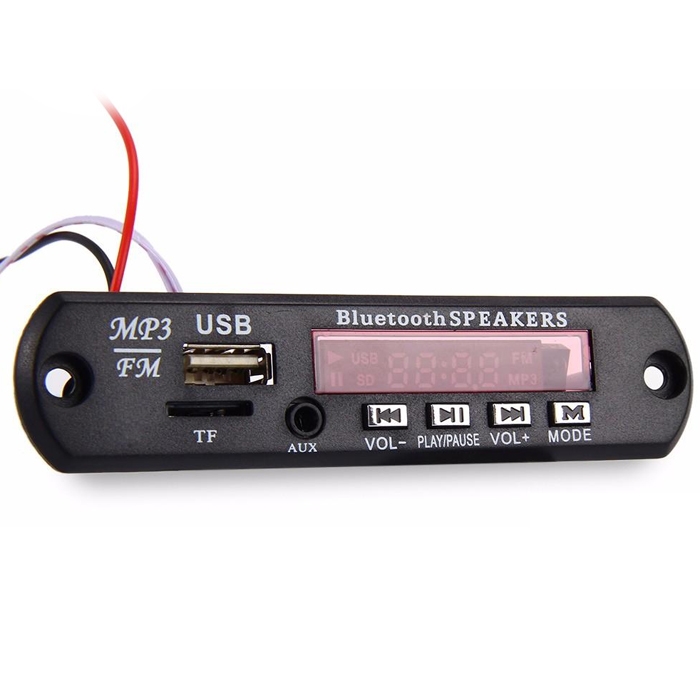

Bluetooth MP3 Decoder Module With Dancing Display, FM, USB, AUX, SD Card, MP3 Decoder Module With Fully Remote Control - VTF-108 BT

0 Reviews | 1 answered questios ID: 9967

Total Price: ₹399

Price: ₹399 ₹ 699.00 42% Off

  • 100% Brand New, High Quality & Great Finishing.
  • Bluetooth FM USB MP3 Audio Board with LCD Display
  • Support: Bluetooth/ FM/ USB/ MP3/ AUX/ SD
  • Frequency: 87.5-108MHZ
  • Read More...

Total Price: ₹399

  Min Order Limit: 1

The VTF-108 BT is a Great Circuit Board for Audio System with Wonderful Sound Quality. It Need to be Connected With Amplifier Board, Then Able to Drive Speakers. It Play Music Via Bluetooth, USB Flash Disk or SD Card as You Wish. FM/USB/SD/Line in Different Modes Can be Switched by Remote Control or Button. You Can DIY Your Own Music Audio System Right Now.

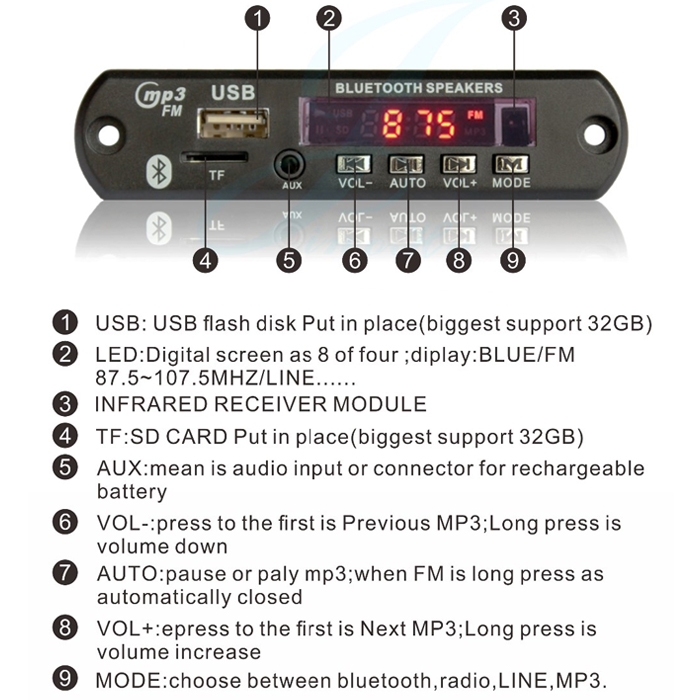

Features:
  • Resume Function: Yes
  • Song Number Display: Yes
  • Song Selection Mode: Yes
  • Forward and Backward Selection: yes
  • With IR Remote Control: Yes
  • With the LINE input (AUX)
  • With Led Display
  • External Antenna Connection for FM
  • LCD Screen Displays Audio File Information & Frequency
  • Digital Volume Level Display
  • Volume Up /Down Buttons
Function Information:
  • Resume Function: YES
  • With 1.888 Display
  • Support: 32-320 kbps MP3 Songs
  • Support: FAT 32, FAT 16 File System
  • Support : FM/USB/SD/MP3/AUX
  • FM Function: 87.5~108 MHZ (Frequency Range)
Please Note:

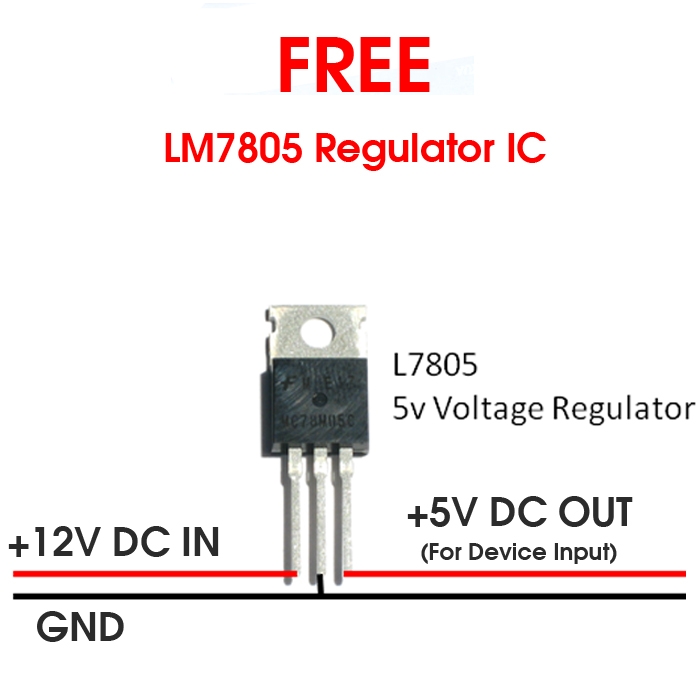

  • If You Want Use This Unit With 12V DC Power Source Then You Should Need “LM7805 Regulator IC” (Free With this Unit) to Convert 12V DC to 5V DC Power. See 4th Image for connection.
  • This is Only a Embedded FM USB MP3 Audio Board Module & You Should Need a Amplifier to Connect the Speakers (For Sound Output).
  • You Have to Add Extra Copper Wire In Antina Wire to Improve Your FM Signal Strength.
  • Read all Description & Fitment Before Ordering the Product.
  • Check the Fitment Model & Compare the Pictures Before Your Purchase, Thanks!
  • Installation Instructions Not Included, Tool Not Included.
  • Professionals Installation is Strongly Recommended to Avoid Trouble Caused By Inexperienced Installer!
  • Product Color/ Texture May Slightly Vary Due to Photographic Lighting Sources or Your Monitor/ Mobile Settings.
Package Include:

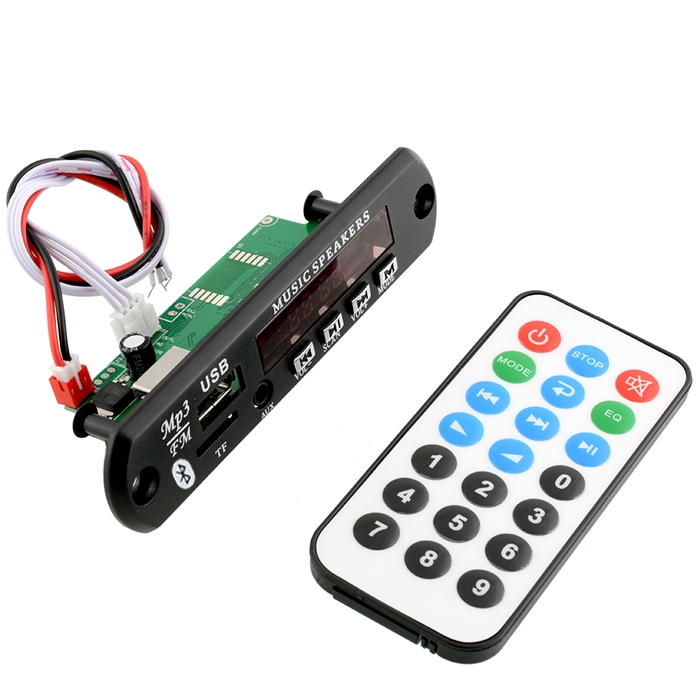

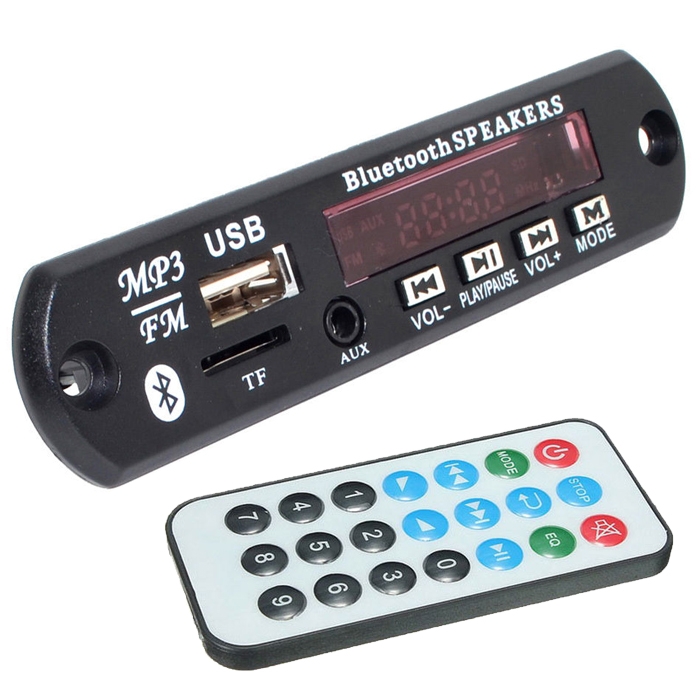

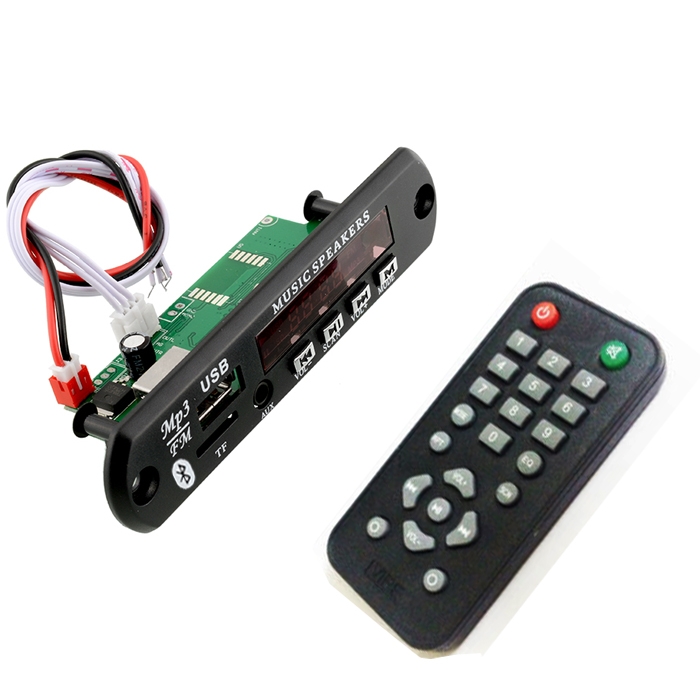

  • 1 x Embedded Bluetooth FM USB MP3 Audio Board with LCD Display
  • 1 x Remote Control
  • 2 x Connection Wire Clip
  • 1 x Free LM7805 Regulator IC (Convert 12V DC to 5V DC)

Brand TRPMART
Product Color: As Shown In Image

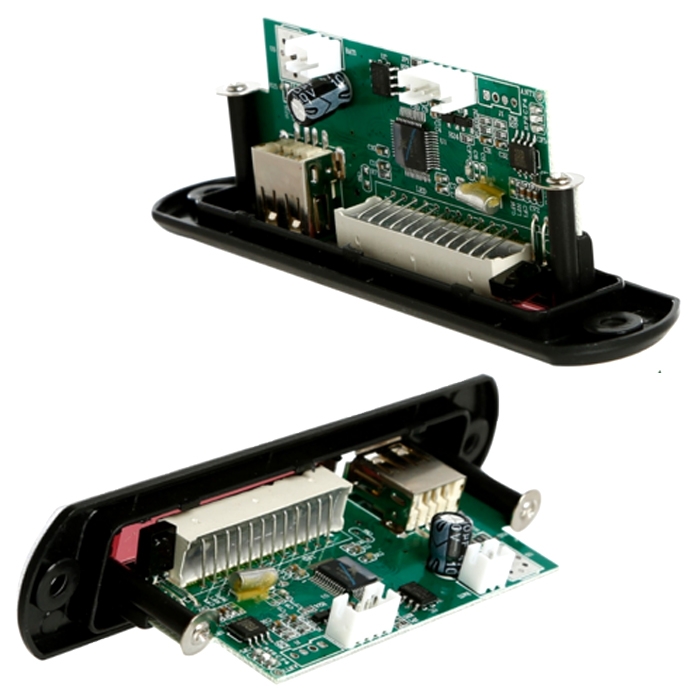

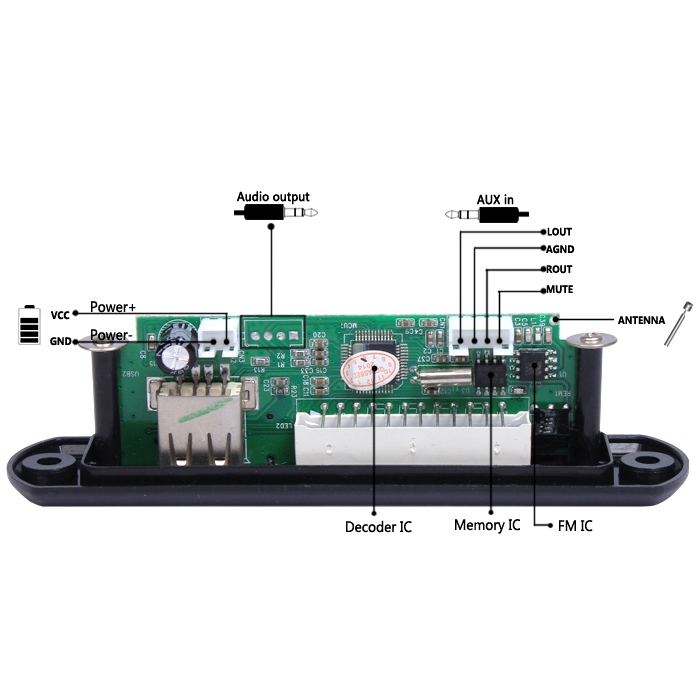

Material: ABS Plastic, Electronic Parts, PCB Board Circuit with Microcontroller Chip
Operating Voltage: 5 Volt DC Power
Pack of: 1 PCS
Feature: Portable, Bluetooth, Manual Controller, IR Remote Controller
Warranty Summary: 10 Days Replacement (Manufacturing Defects Only)
Warranty Conditions: Burnt / Cut / Damaged / Tampered Goods Not Covered
Country of Origin: China
Weight 80 Gram
HSN 8519
Dimensions 11.5 X 4.5 X 3 cm
Technical Standard:
  • Model No.: VTF-108 BT
  • S/N: 65dB
  • Distortion: 0.2%
  • Output: 550 MV
  • Separation: 45 dB
  • Input Supply: 5V/2A (If you want use this unit with 12V DC power supply then you should need "LM7805 Regulator IC" to convert 12V DC to 5V DC power)
  • Length: 41mm
  • Width: 32mm
  • Auto-Search Station: 22-28 dB
  • Frequency Response: (90HZ~15KHZ)
